Set up Visual Studio Code for Python#

Here’s my setup of VS Code. Your milage may vary, depending on your preferred work flow, especially if you are using Jupyter Notebooks (I mostly don’t).

This overview assumes that you are using Windows. Unless stated otherwise, you do not need admin privileges.

TL;DR#

  1. Install Python

  2. pip install numpy matplotlib scipy uproot

  3. Install VS Code

  4. Open your *.py file and press CTRL-F5.

Step 1: Install Python#

Get the latest version of Python and install it. Make sure to add the executable to your system’s PATH.

It is useful to install some Python packages globally (i.e., not in a virtual environment), so that they are available for every Python project on your machine.

I usually install:

To install these, just run in any shell

pip install <package>

You could also install atompy globally, but I kinda advise against it (see Installation for all the other methods).

Step 2: Install Visual Studio Code#

Get the latest version of VS Code and install it.

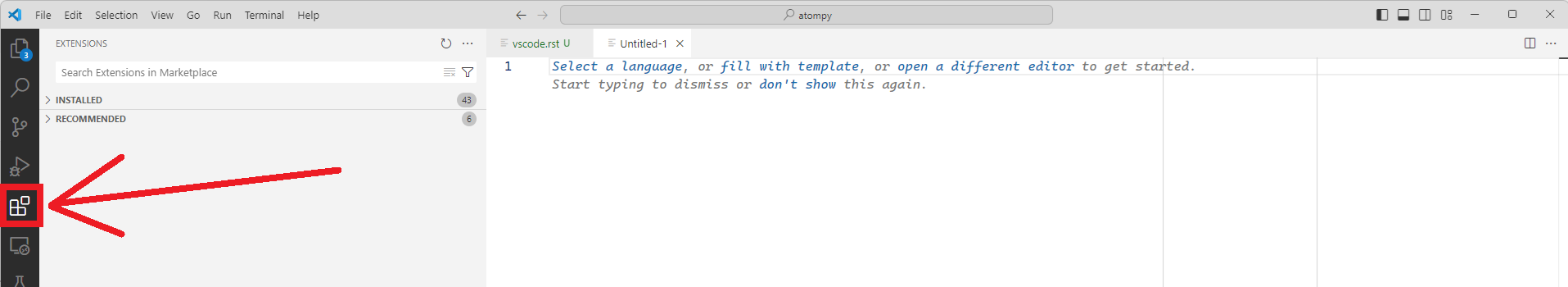

Start VS Code and open the Extensions Pane:

../../_images/vscode-extensions.png

At least install the Python and PythonDebugger extensions.

Now, when you open a Python script you may be asked to select your Python interpreter. Select the one that you installed in Step 1.

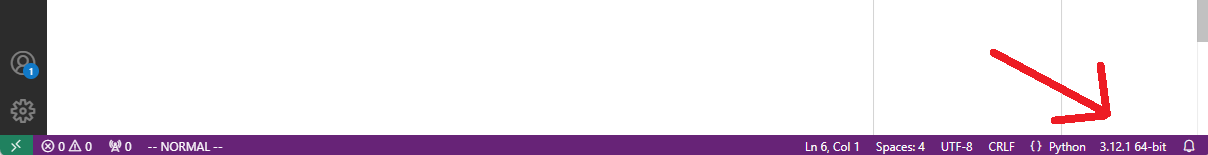

After doing so, it should appear in the bottom right corner of VS Code.

../../_images/vscode-interpreter.png

If not, you can tell VS Code where your default Python interpreter is installed:

  • Open File->Preferences->Settings (or CTRL + ,).

  • In the top-right corner, click on Open Settings (JSON).

  • Add the line "python.defaultInterpreterPath": "path-to\\python.exe",

You should now be able to run your Python script by pressing CTRL + F5. If you want to debug the script, press F5.

If not, check your keyboard shortcuts:

  • In the bottom left corner, click on “Manage”.

  • Open “Keyboard Shortcuts”.

  • Search for “Python: Run File”.

  • Set up a keybind.

Useful Settings#

Below some settings that you can put in settings.json. VS Code auto-complete should give a decent overview of the different options of the settings.

Python#

"python.terminal.executeInFileDir": true,
"python.analysis.typeCheckingMode": "basic",
"[python]": {
    "editor.insertSpaces": true,
    "editor.formatOnSave": true,
    "editor.formatOnType": false,
    "editor.defaultFormatter": "ms-python.black-formatter", // opinionated but best
},

VIM#

Assuming you installed the vscodevim extension.

"vim.useSystemClipboard": false,
"vim.vimrc.enable": true,
"vim.highlightedyank.enable": true,

General#

"editor.autoClosingBrackets": "never",
"editor.autoClosingQuotes": "never",
"editor.rulers": [88], // 90-ish is good
"editor.lineNumbers": "relative",
"editor.indentSize": "tabSize",
"editor.inlayHints.enabled": "offUnlessPressed",
"editor.cursorSurroundingLines": 10,
"workbench.panel.defaultLocation": "bottom",
"workbench.panel.opensMaximized": "preserve",

Move cache directory#

By default, VS Code stores cache and similar files in the %AppData% folder (C:\Users\<username>\AppData\Roaming). Unfortunate if your account is actually synced in a network (since VS Code may create hundreds of thousands of cache files, syncing them can take for-ever).

As of 2024, I don’t know any method how to change the location. But one can change the actual location using symbolic links, as outlined on stackoverflow.

Step 3: Install a PDF reader#

This is optional, but part of my workflow.

In particular, install a PDF reader that doesn’t lock the opened file as read-only.

If you do so, you can save your matplotlib figures in a PDF, open it using such a reader. Then, after you edit the figure and save the changes, the updates are continously updated in the PDF editor.

At least, if you use either the VS Code build-in PDF reader (see extensions), or Sumatra PDF.

There are other ways. But this is mine.
